EZ-IV Blood0002 3-way tap Blood Gravity Set
Product Details
NPC: FSB2240
MPC: EZ-IVBlood0002
3-way Tap Blood set with 200 micron filter, 185cm with prime stop & 100cm extension.
UOI : 100
Individually pouched
100 units per box
Available from e-Direct
3-way tap for theatre applications
Red coloured roller clamp for easy identification
Easy access universal spike
Prime stop cap reduces risk of priming spillage
Vented/non-vented drip chamber removes need for air inlet spikes when used with rigid containers
Accurate roller clamp flow control

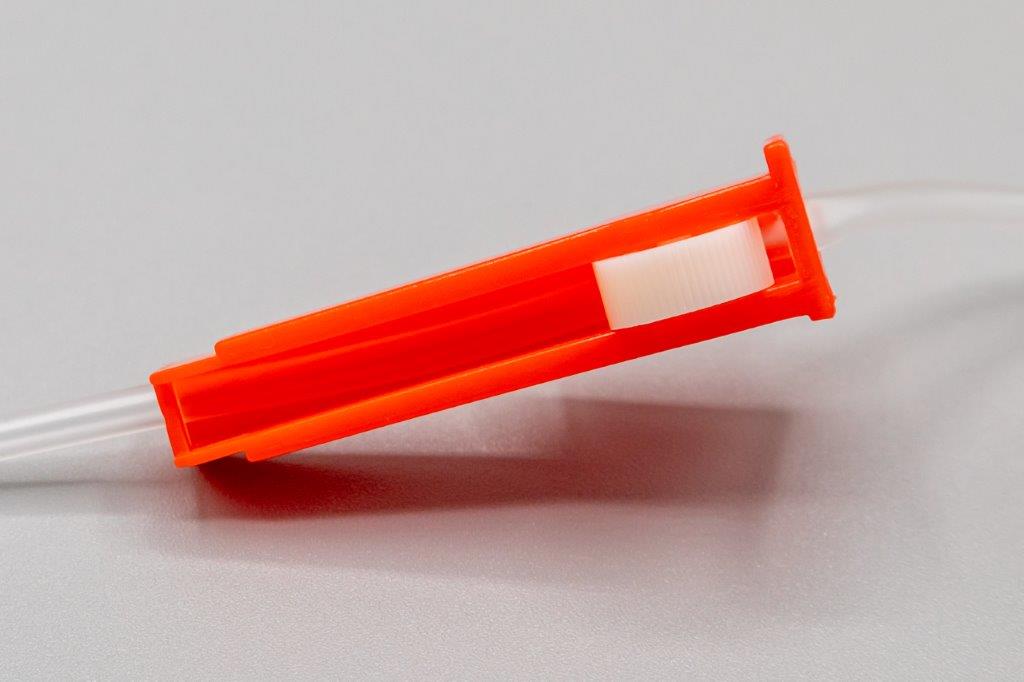

Spike store integrated into roller clamp for safer sharps disposal
Latex and DEHP free
Pouch Label
Product Design
Pouch Label
EZ-IV Blood Admin 0002 – (LATEX and DEHP FREE)
(3-way Tap Blood set with 200 micron filter, 185cm with prime stop & 100cm extension)
Precautions
Do not use if the package is damaged, protective caps are not in place, or the Expiry Date has passed.
Instructions for Use
- Close the roller-clamp
- Remove the protective cover from the blood bag
- Remove the protective cap from the spike
- Introduce the spike into the blood bag, via the correct port
- Suspend the blood bag from the hanger
- Squeeze the chamber to fill approx. 1/3 to ½ of the chamber
- Open the roller-clamp to prime the line. Once primed, close the roller-clamp
- Remove the protective prime stop cap and connect the line to the cannula
- Regulate the flow by opening the roller-clamp
Notes
Blood Drop Rate Volume – 15 drops/ml
Fluid Drop Rate Volume – 20 drops/ml (Distilled water)
