EZ-IV Blood 0003 Double Blood Set
Product Details
NPC: FSB85656
MPC: EZ-IV Blood0003

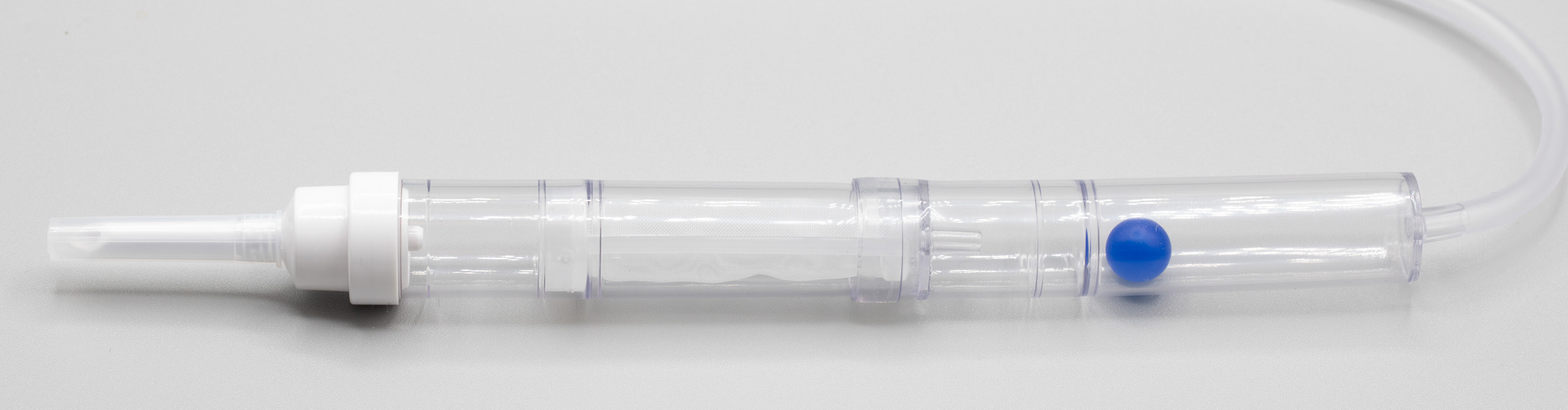

Double Chamber Blood & Blood Derivative Transfusion Set
Blue plastic ball
Rotating male luer lock
185cm
200 micron filter
Prime stop fitted
MRI CT safe Latex/DEHP free
UOI : 50
Individually pouched
50 units per box
Available from e-Direct
Pouch Label
Product Design
Pouch Label
EZ-IV Blood Admin 0003 – (LATEX and DEHP FREE)
(Gravity Blood Administration Dual Chamber, 200 micron filter, 4mm ID, 185cm with primestop)
Precautions
Do not use if the package is damaged, protective caps are not in place, or the Expiry Date has passed.
Instructions for Use
- Close the roller-clamp
- Remove the protective cover from the blood bag

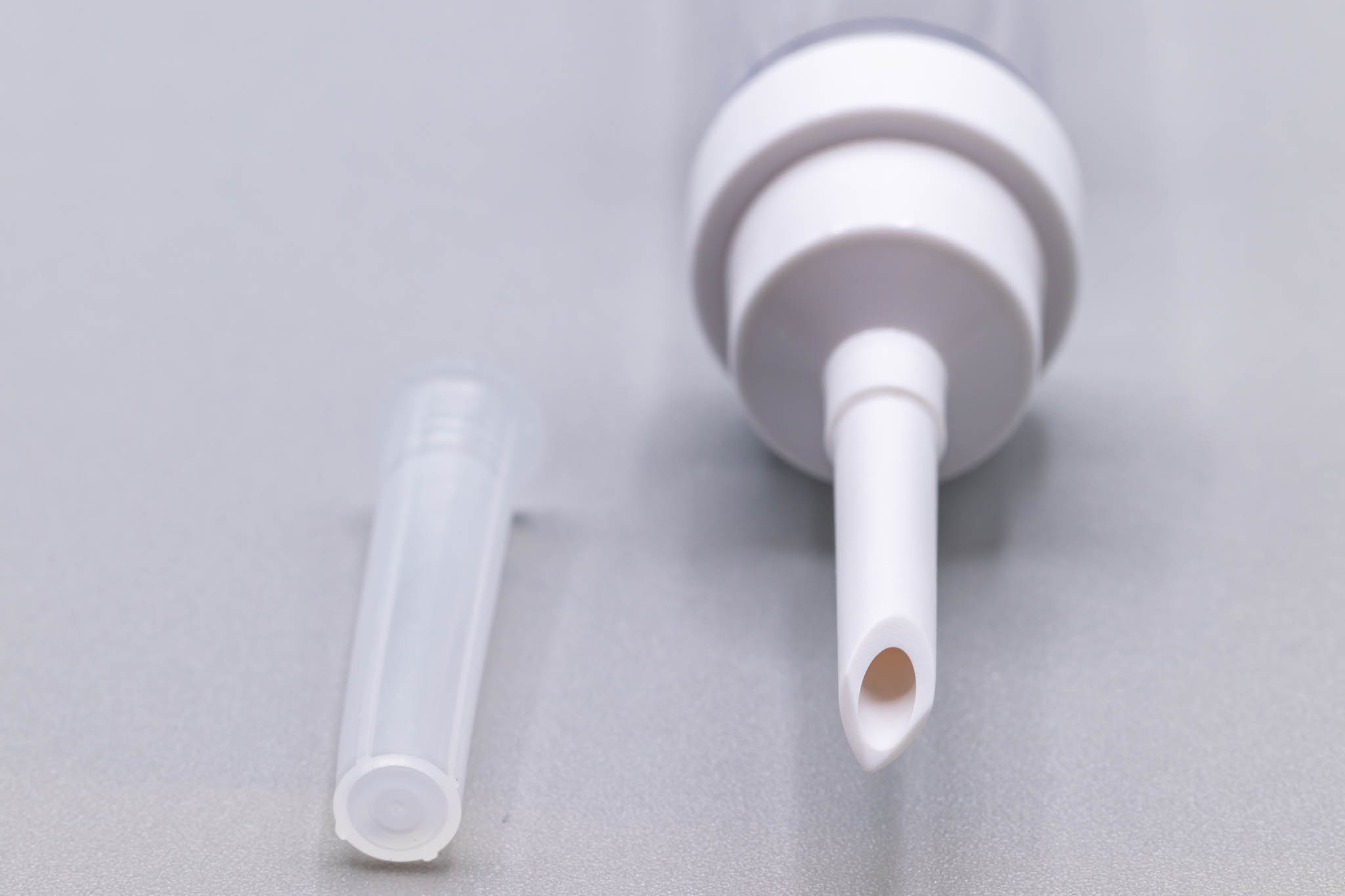

- Remove the protective cap from the spike
- Introduce the spike into the blood bag, via the correct port
- Suspend the blood bag from the hanger
- Squeeze the chamber to fill approx. 1/3 to ½ of the chamber
- Open the roller-clamp to prime the line. Once primed, close the roller-clamp
- Remove the protective prime stop cap and connect the line to the cannula
- Regulate the flow by opening the roller-clamp
Notes
Blood Drop Rate Volume – 15 drops/ml
Fluid Drop Rate Volume – 20 drops/ml (Distilled water)
Product Design
